Xinpuguang 200W 12V Flexible Solar Panel Kit
100w solar panel
100w solar panel
100w solar panel
solar panel
solar panel
Xinpuguang 200W 12V Flexible Solar Panel Kit
100w solar panel
100w solar panel
100w solar panel
solar panel
solar panel

Xinpuguang 200W 12V Flexible Solar Panel Kit

Prezzo
€193,95
Tasse e spedizione calcolate al momento del pagamento
American Express
Apple Pay
Google Pay
Mastercard
PayPal
Shop Pay
Union Pay
Visa

Frequently Bought Together

Product Information

Xinpuguang 200W Outdoors Camping RV Flexible Solar Panel Kit for rv,boat,yacht,car and Home Solar Power Station.

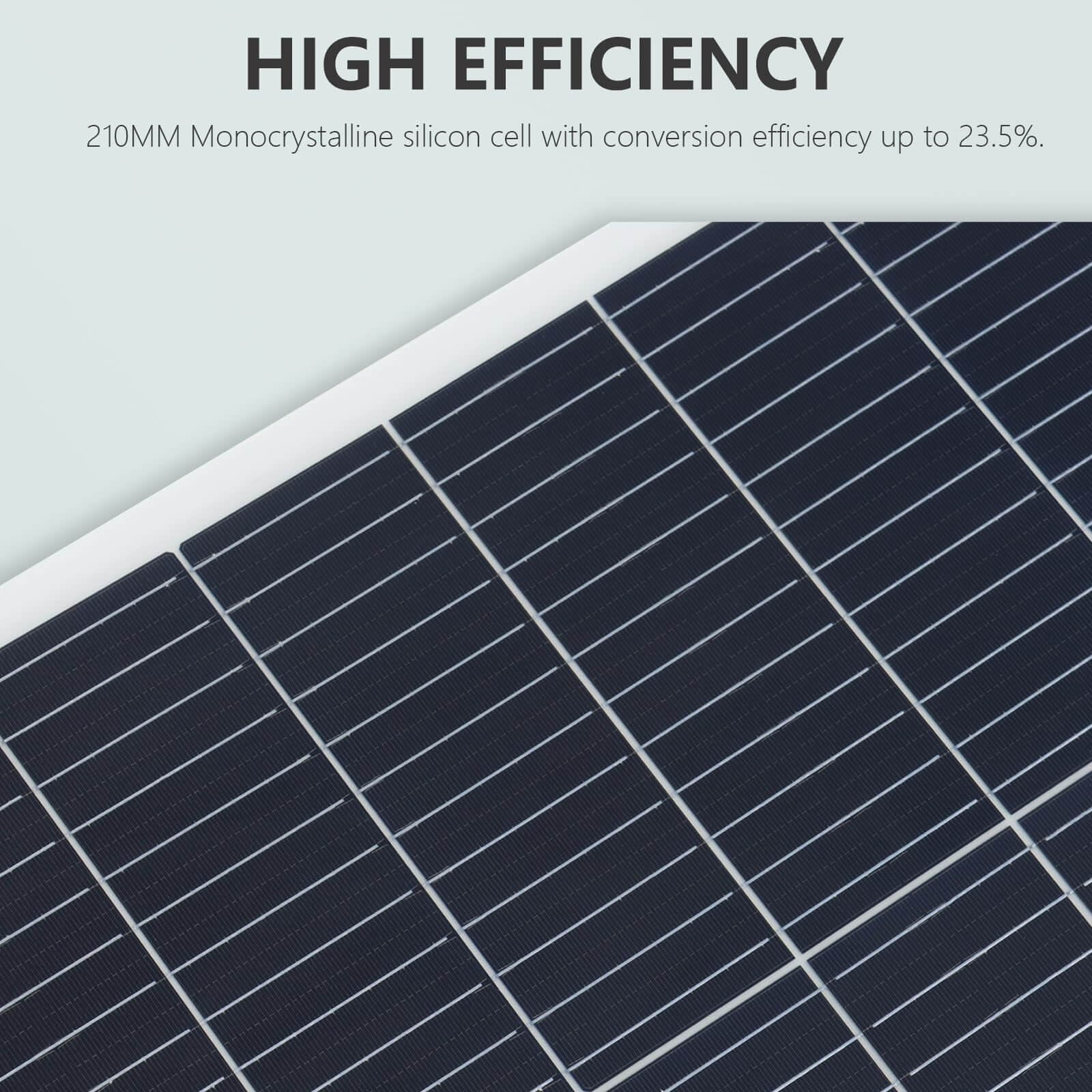

  • *High Efficiency: solar panels use new Perc solar monocrystalline cells, up to 23% conversion rate, 100w solar panels are smaller, lighter and more portable
  • *Semi-Flexible: The plastic back sheet can be curved to a maximum 30 degree arc and mounted on RV, boat, cabin, tent, car, trucks, trailers or any other irregular surface.

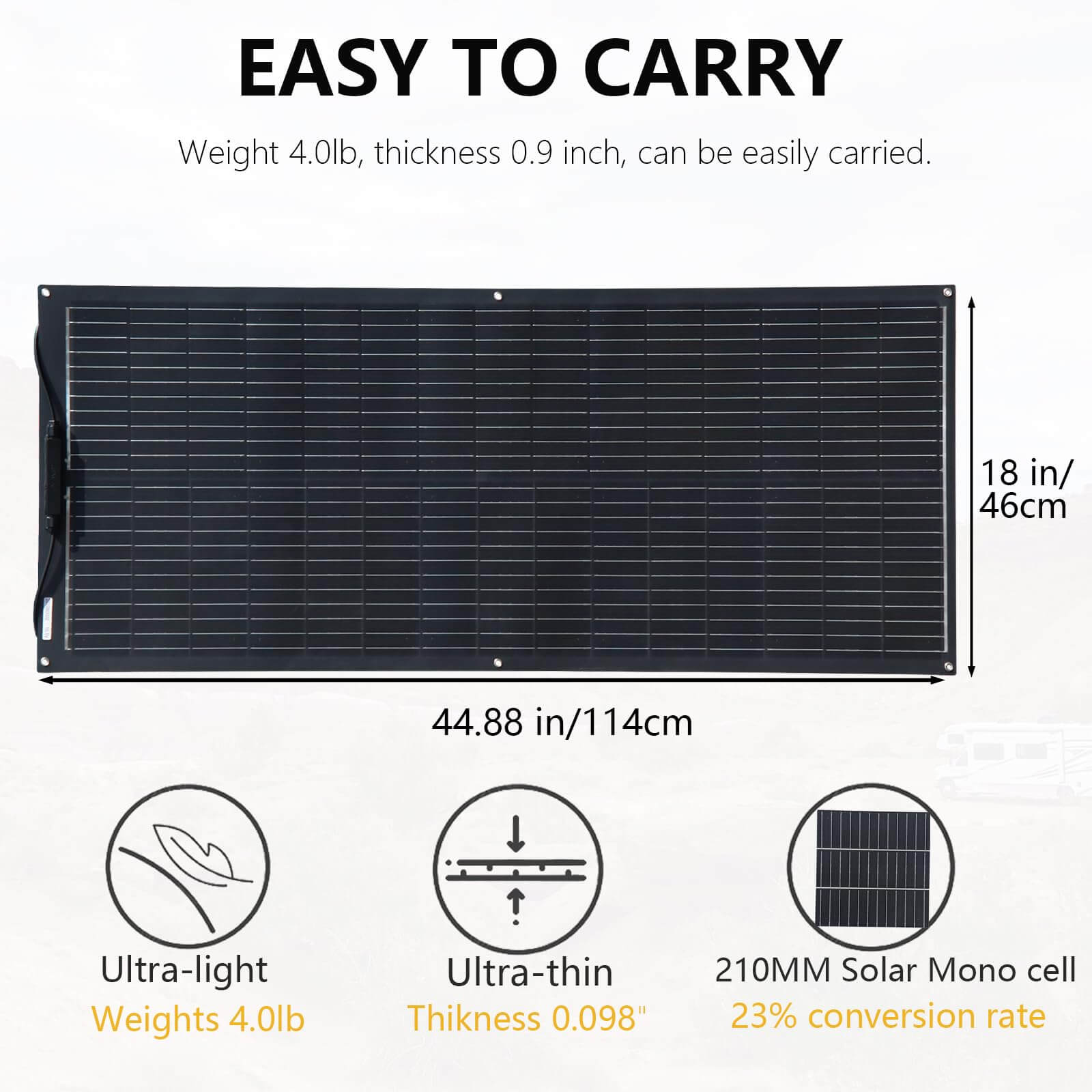

  • *Thin & Lightweight：100W solar panel weighs approximately 4lb,Thickness is 0.1in， weighs 70% less than conventional solar panels, making transportation and installation a breeze.
  • *Practicality: Light energy converts electricity, Practical and suitable for use in areas where electricity is not available and where the city cannot reach, such as mountains, marine, deserts, and remote areas
  • *Nice Details: The component contains a bypass diode, and the circuit uses input over current protection and reverse protection design.The solar panel has 6 grommet mounting holes are available to attach fasteners，and can also be installed with silicone and adhesive tape.
Specification

✈ Solar Panel
Maximum power(Pmax) 100W
Maximum system voltage 700V DC
Open circuit voltage(Voc) 21.6V
Short circuit current(Isc) 6.11A
Maximum power voltage(Vmp) 18V
Maximum power current(Imp) 5.55A
Operating temperature（NOCT） 45±2℃
Temperature range -20℃～+80℃
Weight 2KG/4.4lb
Size: 955*530*3mm(37.59x20.66x0.11 in)
Standard Test Conditions ： lrradiance 1000w/m2，Temperature 25℃,AM=1.5

✈ 20A charge controller
Battery voltage：12V/24V auto
Charge current:20A
Discharge current：20A
USB output：5V/2A
Self-consume：<10mA
Operating temperature：-35~+60 ℃
suitable for ：lead acid batteries， lithium ions
Build-in short-circuit protection,open-circuit protection,reverse

✈ Packing list：
1. 2*100w solar panel1 * 20A 12v/24v charge controller
2. 1 set Extension cable with PV connector
3. 1 set cable with alligator clip （connect to battery）
4. 1 set 2 in 1 PV connector （in parallel solar panel）
5. 2 * adapter

Features

The XINPUGUANG 100Watt flexible solar panel is made of PERC Monocrystalline cells with a conversion rate of 22%. The weight is 1.85kg（4lb）, which is 20% of the traditional solar panels.Size is 955*530*3mm(37.59x20.66x0.11 in) .

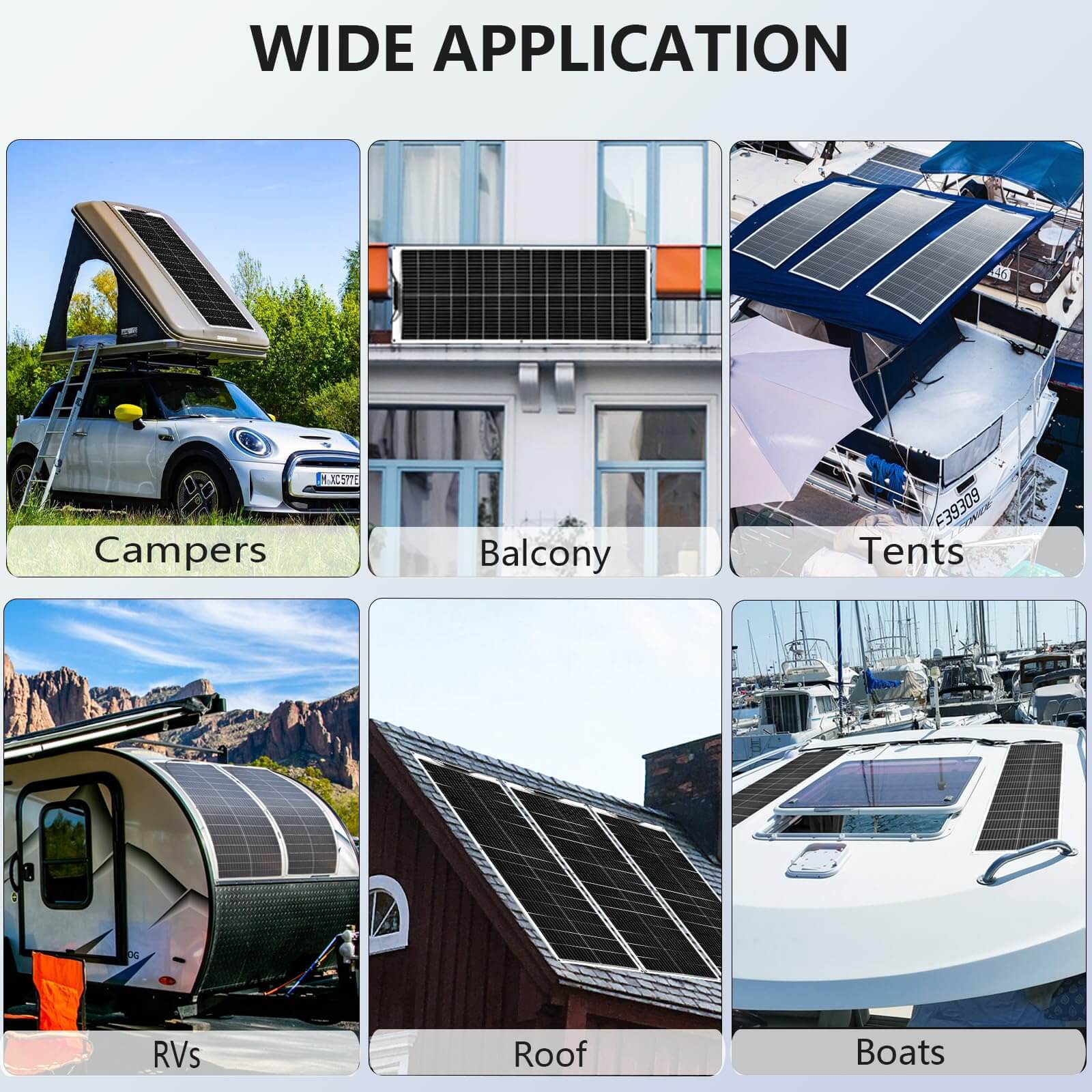

The lightweight nature of flexible solar panels makes solar panels more effective for use in RVs, caravans，boats, tents, trailers, cabins, etc. Portable, easy to install, plug and play.

Warehouse
warehouse solar panel

In order to provide better service, Customers can receive the products quickly.we have set up warehouses in many countries, United States,Australia,Canada, Germany, UK, Spain, France,Belgium, Saudi Arabia. Germany,  Full coverage of EU countries, can be delivered.Our warehouse range is also expanding, please look forward to.

Free Shipping

Shipping is free for non-remote addresses

Fast shipping

Warehouse address local shipping, shipping speed.
